1 CSS 3 动画简介

​ 我们平时看到的动画是由一张一张静态的画面拼接而成的,我们通常用帧数来体现出动画效果的好与坏。 每一帧都是静止的图象,快速连续地显示帧便形成了运动的假象。 高的帧率可以得到更流畅、更逼真的动画。1

​ css中实现动画有两种方式:过渡动画 transitions|自定义动画animation;两者均可以通过元素的旋转(rotate),缩放(scale),倾斜(skew)或平移translate(*也可使用较复杂的矩阵API:(transform))、颜色(color|background)、透明度(opcaticy)完成帧动画效果。下列示例是一个旋转的实例,可查阅MDN文档学习其他位置变换属性、颜色背景等。

<html>
    <head>
        <style>
            #arrow-right{
                display: inline-block; /*修改未行内元素、可修改高&宽*/
                margin:4px;
                width: 10px;
                height: 10px;
                border-right:2px solid black;
                border-bottom:2px solid black;
                transform-origin: 0% 100%;   /*中心*/
                transform: rotate(-45deg);   /*然后逆时针旋转45°*/
            }

            #arrow-left{
                display: inline-block;
                margin:4px;
                width: 10px;
                height: 10px;
                border-top:2px solid black;
                border-left:2px solid black;
                transform: rotate(-45deg);      /*原地逆时针旋转45°*/
            }
            .row{
                margin:4px;
                display: flex; /*flex 布局*/
                justify-content:start; /*元素从左侧排列,常用的还有center|space-around|space-between..*/
                align-items: center;/*子元素按垂直居中对齐*/
            }
        </style>
    </head>
    <body>
        <div class="row">
            <div id='arrow-left'></div> <span> Left </span>
         </div>
         <div class="row">
            <div id='arrow-right'></div> <span>Right</span>
         </div>
    </body>
</html>

​ 完成后生成左、右箭头,当然这个是没有动画效果的,因为它是对元素立即生效的。

image-20230418105449069

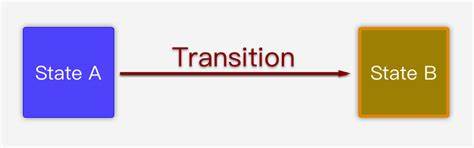

1.1 transitions

transition属性的作用是补充中间帧(你只需要告诉它开始怎么样,结束怎么样,过程动画它会自动补齐),需要配合transformtranslate等属性一起完成动画效果。

transition: property duration timing-function delay;

transition-property 指定CSS属性的name,transition效果:none、transform、all、等等
transition-duration transition效果需要指定多少秒或毫秒才能完成
transition-timing-function 指定transition效果的转速曲线,常用 linear
transition-delay 定义transition效果开始的时候

​ 类似上面那个箭头实例,我们加上鼠标悬停的动画效果,代码如下:

<html>
  <head>
    <style>
      .close {
        cursor: pointer; /*使鼠标指针显示为手型*/
        display: block;
        width: 30px;
        height: 30px;
        border-right: 2px solid black;
        border-top: 2px solid black;
        font-size: 20px;
        line-height: 32px;
        background: #fff;
        color: #8b8ab3;
        text-align: center;
        transform: rotate(45deg); /*原地逆时针旋转45°*/
      }
      .close:hover {
        transform: rotate(135deg); /*原地逆时针旋转135°*/
        transition: transform 1s linear; /*图标在1秒内匀速旋转135。*/
      }
    </style>
  </head>
  <body>
    <div class="close"></div>
  </body>
</html>

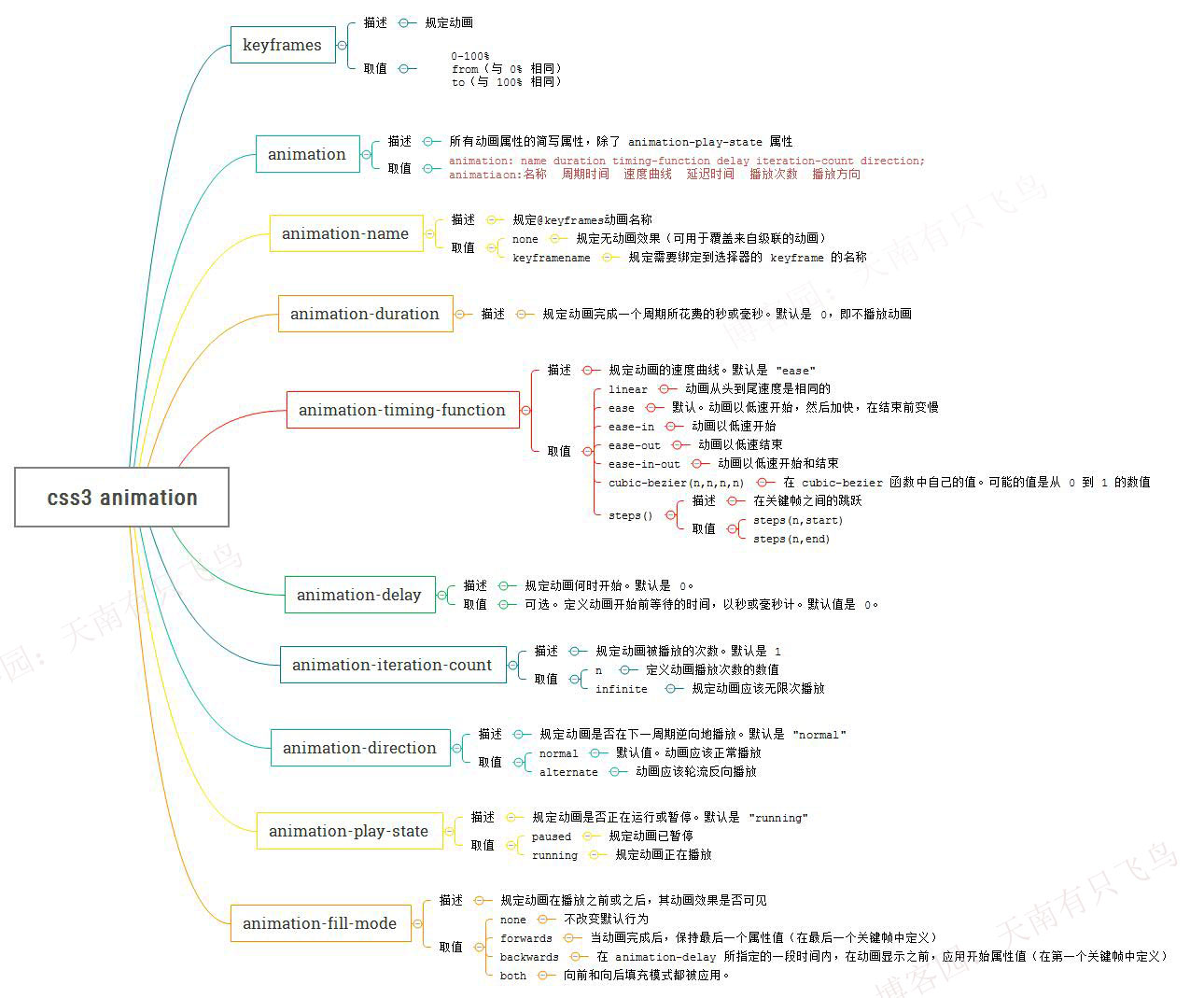

1.2 animation2

CSS animations动画包括两个部分:描述动画的样式规则和用于指定动画开始、结束以及中间点样式的关键帧(@keyframes)。

<style>
  .box {
    width: 50px;
    height: 50px;
    background-color: pink; /*初始未粉色*/
    animation-name: test; /*动画名称*/
    animation-duration: 1s; /*1s动画循环*/
    animation-iteration-count: infinite; /*无限播放*/
  }
  @keyframes test {
    50% { /*0.5s的关键帧,注意可以自行增加其他百分比的关键字*/
      width: 100px;  /*变大2倍*/
      height: 100px;
      border-radius: 50%;  /*边框改为圆形*/
      background-color: skyblue;/*颜色变为*/
    }
  }
</style>
<body>
  <div class="box"></div>
</body>

生成效果如下:

2 vue 配合animate.css 3的高级动画

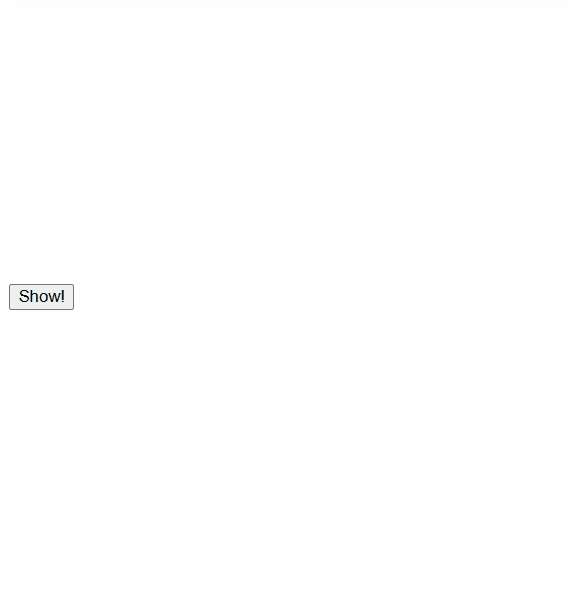

​ 一般在开发时可使用animate.css完成动画效果;配合vue的过渡·transition·的示例如下:

<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <script src="https://unpkg.com/vue@2"></script>
    <link
      rel="stylesheet"
      href="https://cdnjs.cloudflare.com/ajax/libs/animate.css/4.1.1/animate.min.css"
    />
    <style>
      .box {
        width: 450px;
        height: 220px;
        background-size: cover;
        background-repeat: no-repeat;
        background-image: url(./1.webp);
        margin: 2px 0;
        border-radius: 4px;
        box-shadow: 0px 0px 15px lightgreen;
      }
      /* .fade-enter-active,.fade-leave-active {
        transition: all 5s ease-out;
      }
      .fade-enter,.fade-leave-to{
        opacity: 0;
        transform: scale(0.5) rotate(-360deg);
      }
      .fade-enter-to,.fade-leave{
        opacity: 1;
      } */
    </style>
  </head>
  <body>
    <div id="demo">
      <transition appear
        appear-active-class="animate__animated animate__bounceInDown"
        ><div class="box"></div>
      </transition>
      <button @click="show=!show">{{show?'hide':'Show!'}}</button>
      <!-- <transition name="fade"></transition> -->
      <transition
        enter-active-class="animate__animated animate__flipInY"
        leave-active-class="animate__animated animate__flipOutY"
      >
        <div class="box" v-if="show"></div>
      </transition>
    </div>
    <script>
      const vm = new Vue({
        el: "#demo",
        data: { show: false },
      });
    </script>
  </body>
</html>



  1. 逐帧动画和关键帧动画 - 知乎 (zhihu.com) ↩︎

  2. CSS3-animation动画详解 - 掘金 (juejin.cn) ↩︎

  3. Animate.css | A cross-browser library of CSS animations. ↩︎
