1 安装

  1. 安装android-studio,如android-studio-2020.3.1.26-windows.exe 1
  2. 安装SDK！建议找比较完整的SDK目录压缩包下载
  3. 第一步不装avd（andriod模拟器)，下载雷电模拟器来替代
  4. 下载必要的依赖库okhttp-3.8.1.jar\okio-1.14.0.jar等（吐槽下JAVA这个服务器开发语言，居然没有好用的HTTP封装类，和C++没有标准的网络库一样，属实难崩）
  5. *安装postman等工具用于测试

2 配置

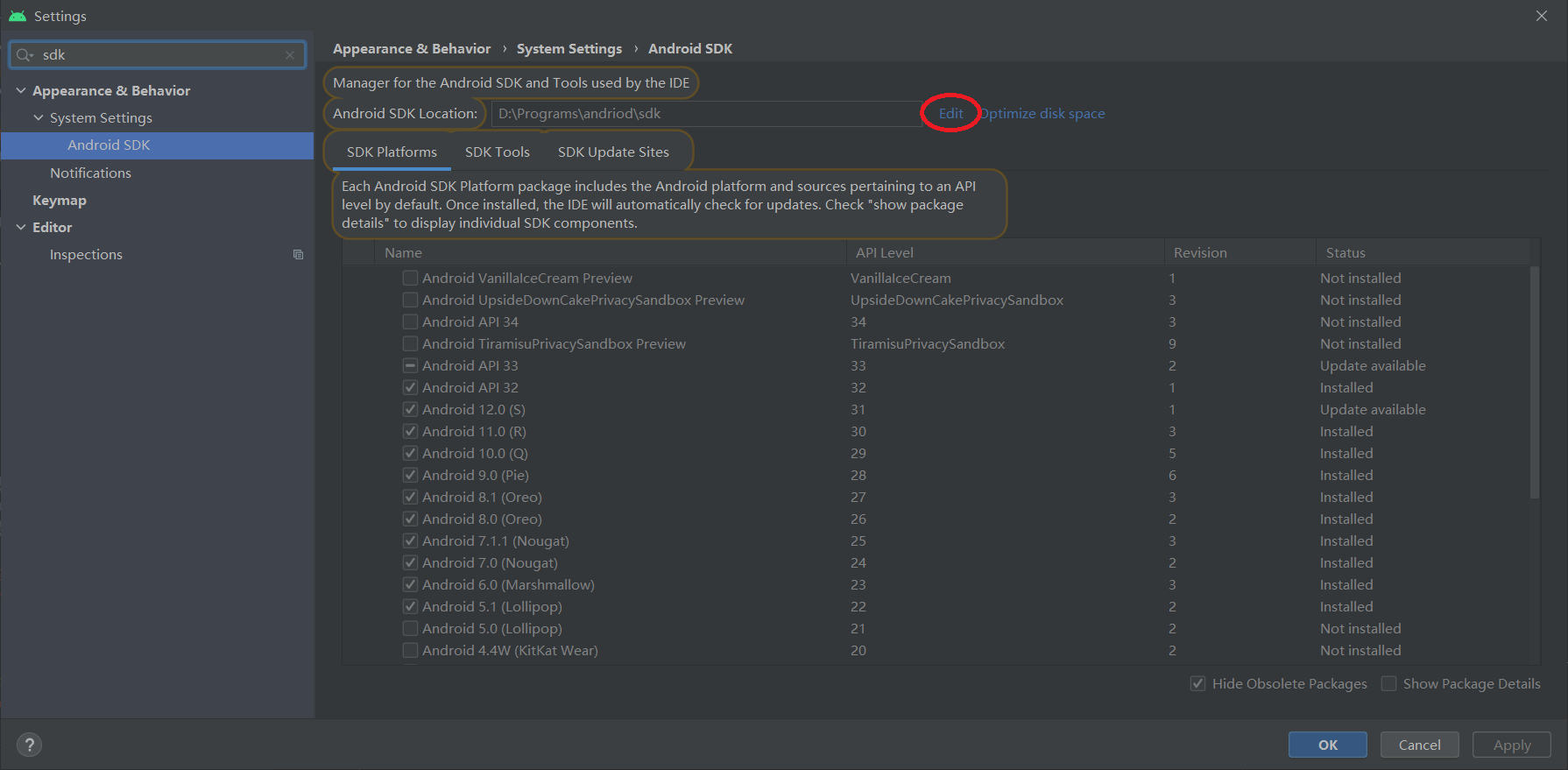

  1. 首先配置SDK目录：

image-20240306092330063

  1. 配置gradle（大坑一个，参考2）

    1. step-1：修改hosts文件，附加：

      # dl.google.com fucking andriod
58.254.149.225 dl.google.com
220.181.174.97 dl.google.com
180.163.151.161 dl.google.com
220.181.174.33 dl.google.com
58.254.137.161 dl.google.com
203.208.39.193 dl.google.com

    2. step-2:创建 C:\Users\Liudx1985\.gradle\init.gradle

      allprojects{
    repositories {
        def ALIYUN_REPOSITORY_URL = 'https://maven.aliyun.com/repository/public'
        def ALIYUN_JCENTER_URL = 'https://maven.aliyun.com/repository/public'
        def ALIYUN_GOOGLE_URL = 'https://maven.aliyun.com/repository/google'
        def ALIYUN_GRADLE_PLUGIN_URL = 'https://maven.aliyun.com/repository/gradle-plugin'
        all { ArtifactRepository repo ->
            if(repo instanceof MavenArtifactRepository){
                def url = repo.url.toString()
                if (url.startsWith('https://repo1.maven.org/maven2/')) {
                    project.logger.lifecycle "Repository ${repo.url} replaced by $ALIYUN_REPOSITORY_URL."
                    remove repo
                }
                if (url.startsWith('https://jcenter.bintray.com/')) {
                    project.logger.lifecycle "Repository ${repo.url} replaced by $ALIYUN_JCENTER_URL."
                    remove repo
                }
                if (url.startsWith('https://dl.google.com/dl/android/maven2/')) {
                    project.logger.lifecycle "Repository ${repo.url} replaced by $ALIYUN_GOOGLE_URL."
                    remove repo
                }
                if (url.startsWith('https://plugins.gradle.org/m2/')) {
                    project.logger.lifecycle "Repository ${repo.url} replaced by $ALIYUN_GRADLE_PLUGIN_URL."
                    remove repo
                }
            }
        }
        maven { url ALIYUN_REPOSITORY_URL }
        maven { url ALIYUN_JCENTER_URL }
        maven { url ALIYUN_GOOGLE_URL }
        maven { url ALIYUN_GRADLE_PLUGIN_URL }
    }
}

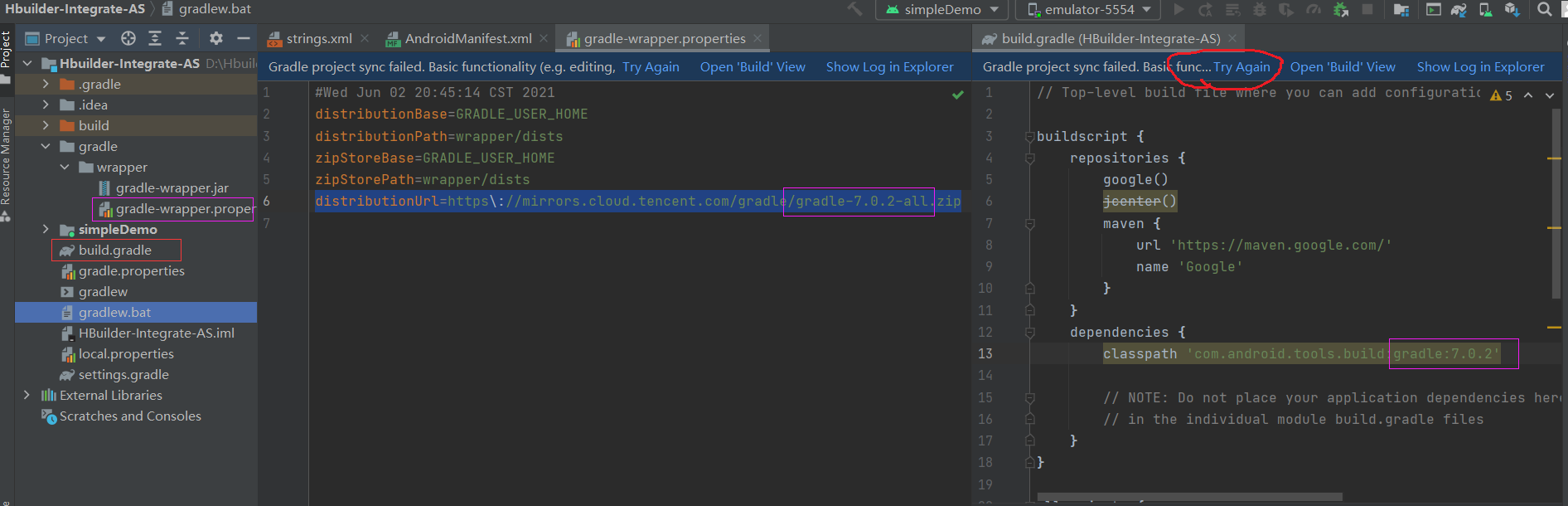

      如果gradle下载速度慢，可以修改工程根目录的/gradle/wrapper/gradle-wrapper.properties字段加速下载gradle-bin

      image-20240308115920730

      #distributionUrl=https\://services.gradle.org/distributions/gradle-7.3.3-bin.zip
distributionUrl=https://mirrors.cloud.tencent.com/gradle/gradle-7.3.3-bin.zip

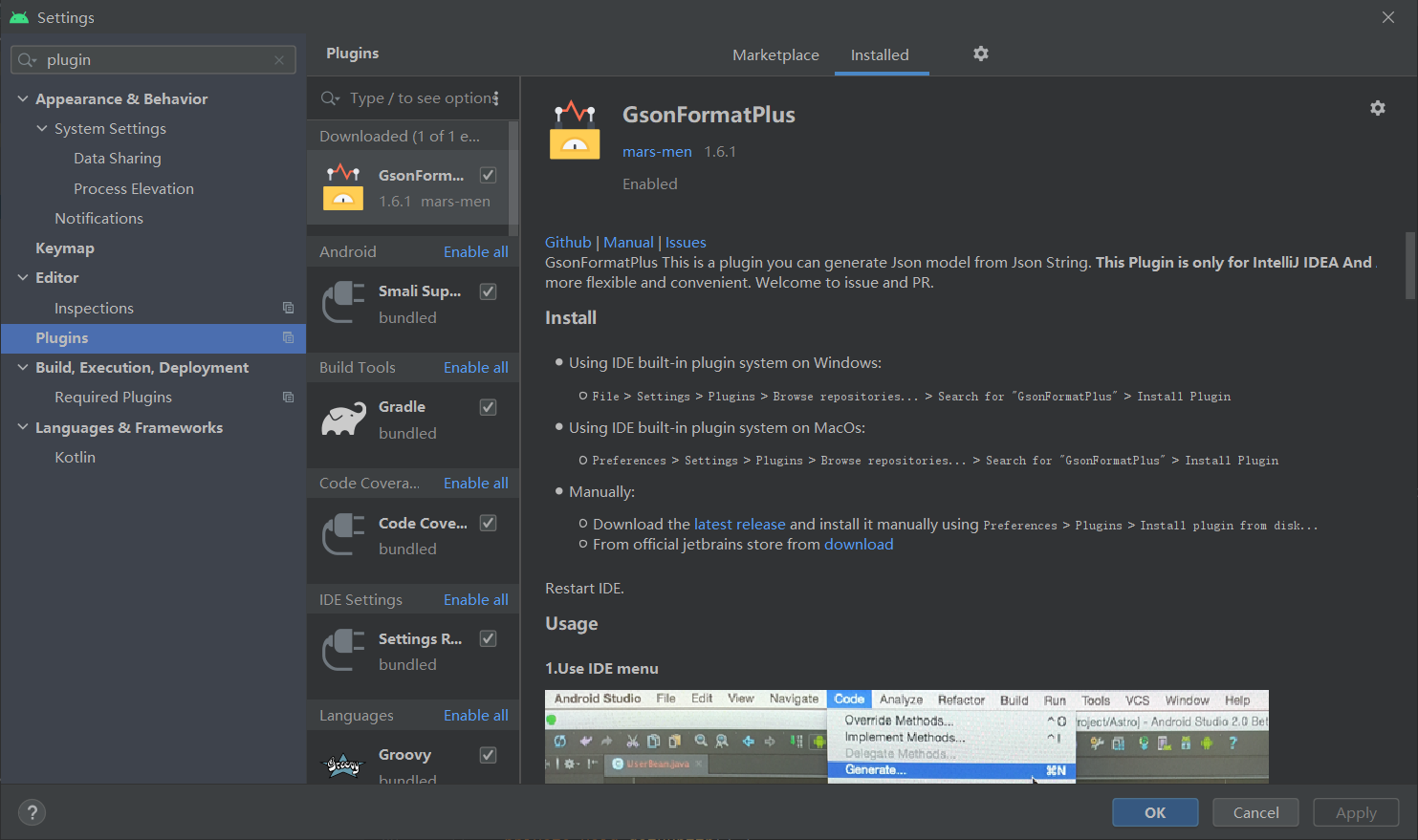

  2. 安装插件,如GsonFormatPlus(从JSON字符串自动生成Bean代码,方便后续解析json字符串)

    image-20240306093408456

    先用postman拿到http请求返回BODY里的JSON字符串

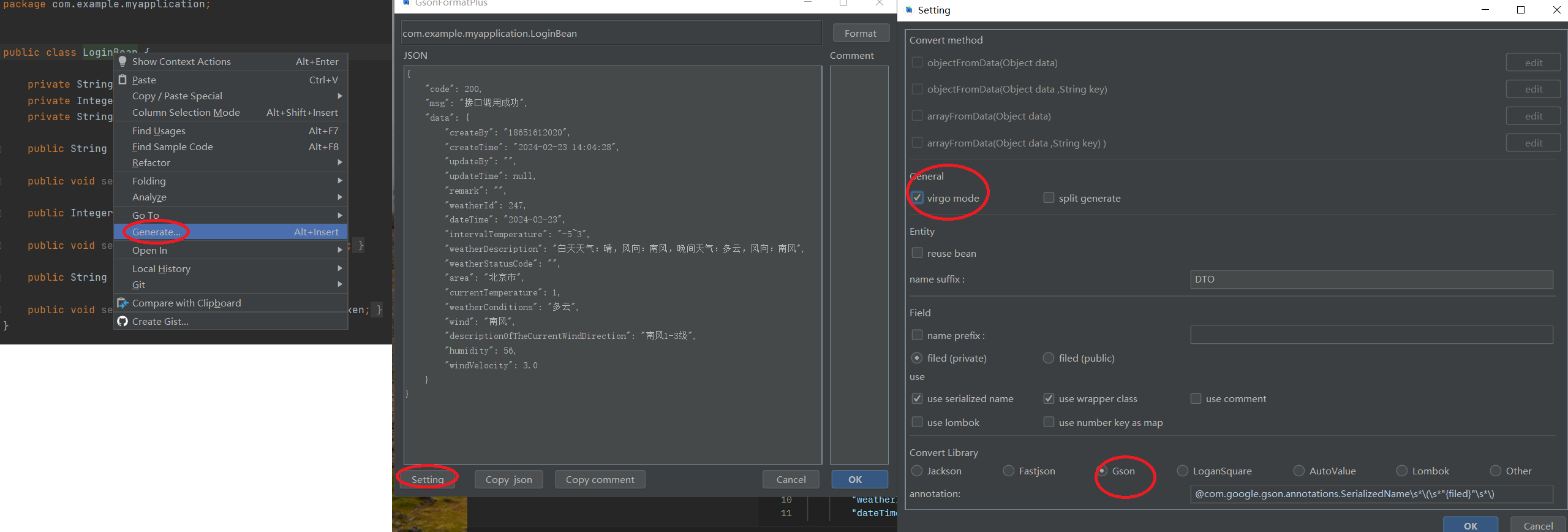

    在类名上右键→选GsonFormatPlus，粘贴上面的JSON字符串→Setting设置Gson→OK即可产生出代码

  3. 先进入雷电模拟器。新建一个测试andrio工程，选一个空activity，可以看到emulator-5554，运行app就可以在雷电模拟器看到程序自动运行了：

    image-0

    image-20240306095207385

3 开发代码

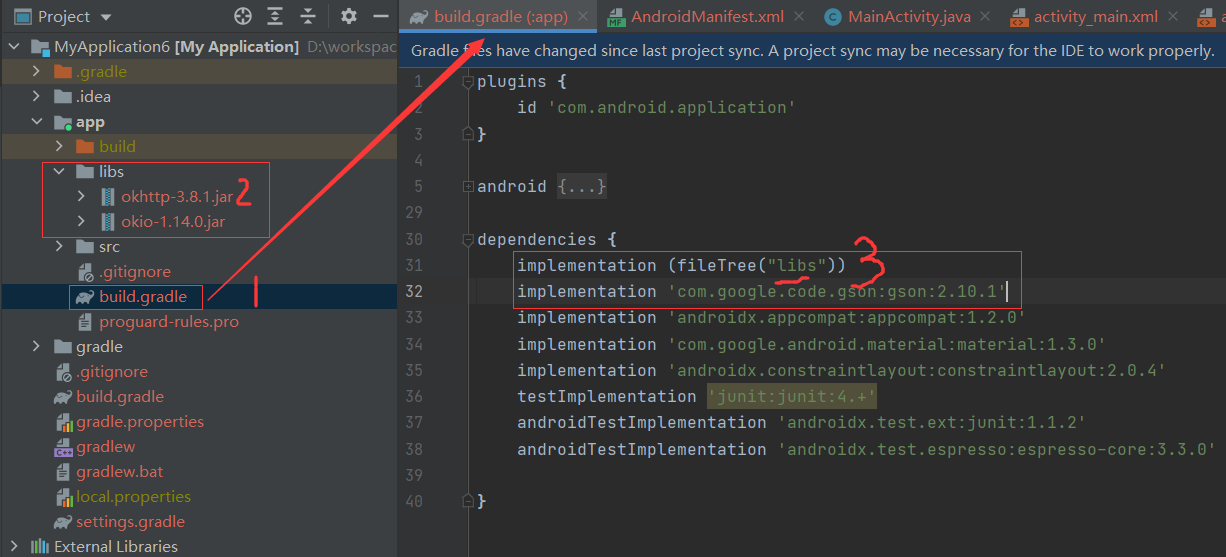

  1. 导入三方库：image-20240306095755500

    1. 有jar格式的，先复制粘贴到根目录下libs目录，然后在./build.gradle里面加入dependencies的 implementation(fileTree("libs"))
    2. 网络三方库，直接在上述的build.gradle里面使用包名字引入
    3. 点击右上角的sync！同步代码配置【重要】

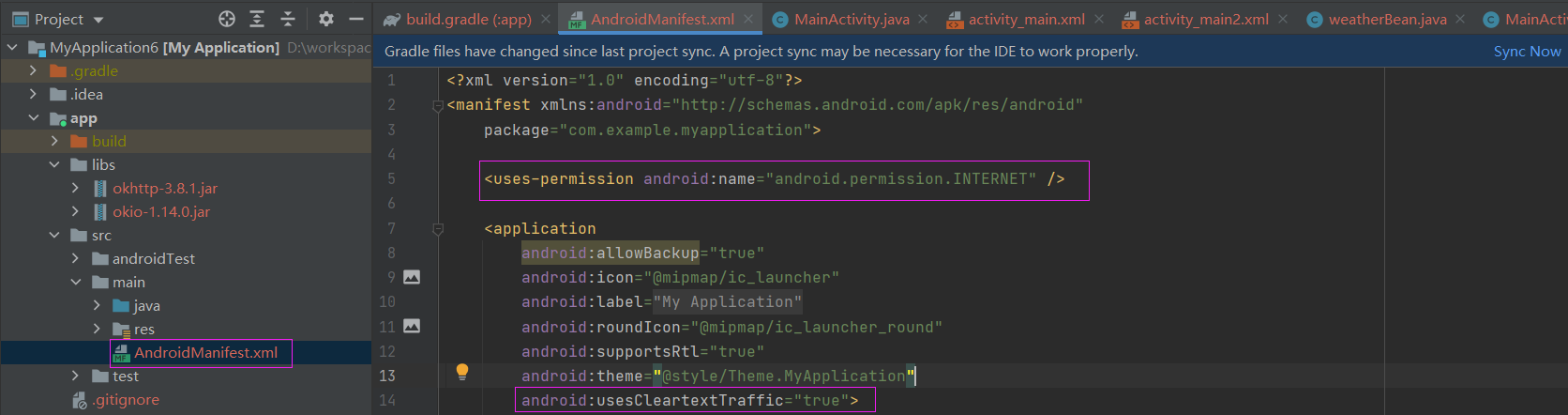

  2. 增加andriod的网络权限 、.usesCleartextTraffic，供后续的HTTP请求使用image-20240306100223074

  3. 绑定各种android:id="@+id/welcome",为5做准备

    <TextView
 android:id="@+id/welcome"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello World!"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

  4. +HttpUtil.java封装类

    package com.example.fuckandriod;
import java.io.IOException;
import okhttp3.Call;
import okhttp3.Callback;
import okhttp3.MediaType;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.RequestBody;
import okhttp3.Response;

public class HttpUtil {
    interface JsonHandler{ // 接口，用于HTTP返回数据的回调
        void handle(String body);
    }

    private static String token=""; //
    static public void setToken(String t){ // 保存TOKEN，供后续自动设置HEADER['Authorization'] = TOKEN!
        token = t;
    }

    /***
     * Get request
     * @param url get URL
     * @param handler callback !
     */
    static public void get(String url, JsonHandler handler) {
        Request request = new Request.Builder()
                .url(url)
                .addHeader("Authorization", token) // 设置HEADER['Authorization'] = TOKEN!
                .get()
                .build();
        OkHttpClient okHttpClient = new OkHttpClient.Builder()
                .build();
        Call call = okHttpClient.newCall(request);
        call.enqueue(new Callback() {// 注意此处是异步的，也就是onResonpse内设置的成员&变量，要避免在外部直接使用
            @Override
            public void onFailure(Call call, IOException e) {

            }

            @Override
            public void onResponse(Call call, Response response) throws IOException {
                handler.handle(response.body().string());
            }
        });
    }

    /***
     *
     * @param url url to post
     * @param data JSON string
     * @param handler handler callback
     */
    static public void post(String url, String data, JsonHandler handler) {
        MediaType JSON = MediaType.parse("application/json; charset=utf-8"); // Json数据 Type
        RequestBody body = RequestBody.create(JSON, data); // 转换字符串为JSON
        Request request = new Request.Builder()
                .url(url)
                .addHeader("Authorization", token)
                .addHeader("Content-Type", "application/json;charset:utf-8")// post data format as JSON
                .post(body)
                .build();
        OkHttpClient okHttpClient = new OkHttpClient.Builder()
                .build();
        Call call = okHttpClient.newCall(request);
        call.enqueue(new Callback() {
            @Override
            public void onFailure(Call call, IOException e) {

            }

            @Override
            public void onResponse(Call call, Response response) throws IOException {
                handler.handle(response.body().string());
            }
        });
    }
}

  5. 请求测试，注意这里面的beans类全部是用GsonFormatPlus插件生成！

    package com.example.fuckandriod;
import android.os.Bundle;
import android.util.Log;
import android.widget.TextView;
import androidx.appcompat.app.AppCompatActivity;
import com.google.gson.Gson;

public class MainActivity extends AppCompatActivity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        login();
    }

    private void getWeather() {
//        String url = "https://api.gumengya.com/Api/Weather?format=json&city=北京市&scene=1";
        String url = "http://10.199.1.96:8888/bs-weather-report/weather/area?area=北京市";
        HttpUtil.get(url, body -> {
            WeatherBean2 bean = new Gson().fromJson(body, WeatherBean2.class);
            runOnUiThread(() -> {
                // set textview etc.
                TextView tv_tem = findViewById(R.id.welcome);
                tv_tem.setText("温度：" + bean.getData().getCurrentTemperature() + "°C");
            });
        });
    }

    private void login() {
        String jsonStr = "{\"username\":\"admin\",\"password\":\"admin123\"}"; // JSON 字符串！
        String url = "http://10.199.1.96:8888/login";
        HttpUtil.post(url, jsonStr, body -> {
            LoginBean bean = new Gson().fromJson(body, LoginBean.class);
            String token = bean.getToken();
            Log.d("GET-TOKEN: ", "login: token");
            HttpUtil.setToken(token);// 存储TOKEN后在发送GET 请求天气数据！
            getWeather(); // 注意此处是异步的，要避免在外部直接使用getWeather，不一定取到了token!!!
        });
    }
}

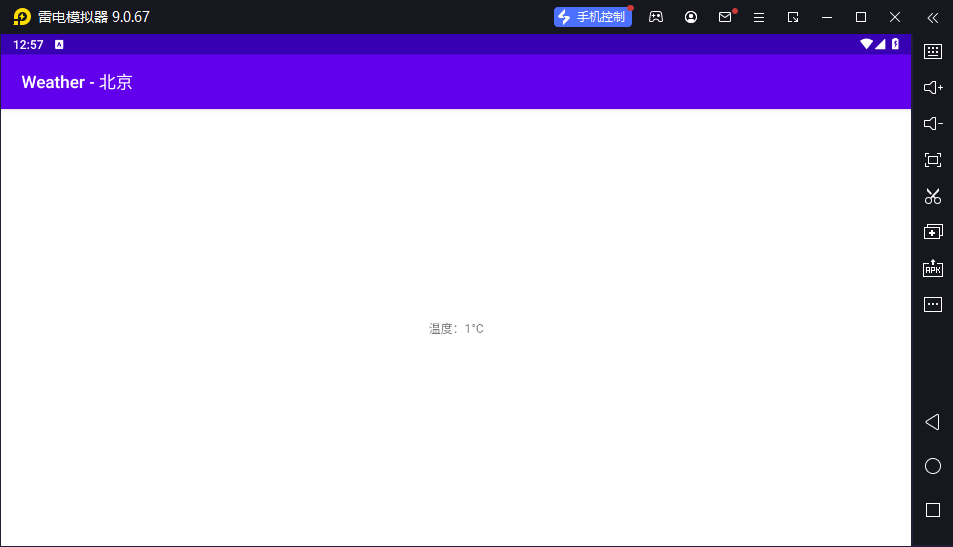

    image-20240306104112846
